Unit 8 Lab - Configuration Drift and Remediation

If you are unable to finish the lab in the ProLUG lab environment we ask you reboot the machine from the command line so that other students will have the intended environment.

Required Materials

Putty or other connection tool Lab Server

Root or sudo command access

STIG Viewer 2.18 (download from https://public.cyber.mil/stigs/downloads/ )

Downloads

The lab has been provided below. The document(s) can be transposed to the desired format so long as the content is preserved. For example, the .txt could be transposed to a .md file.

Lab 🧪

These labs focus on configuration drift tracking and remediation.

Operational Activities

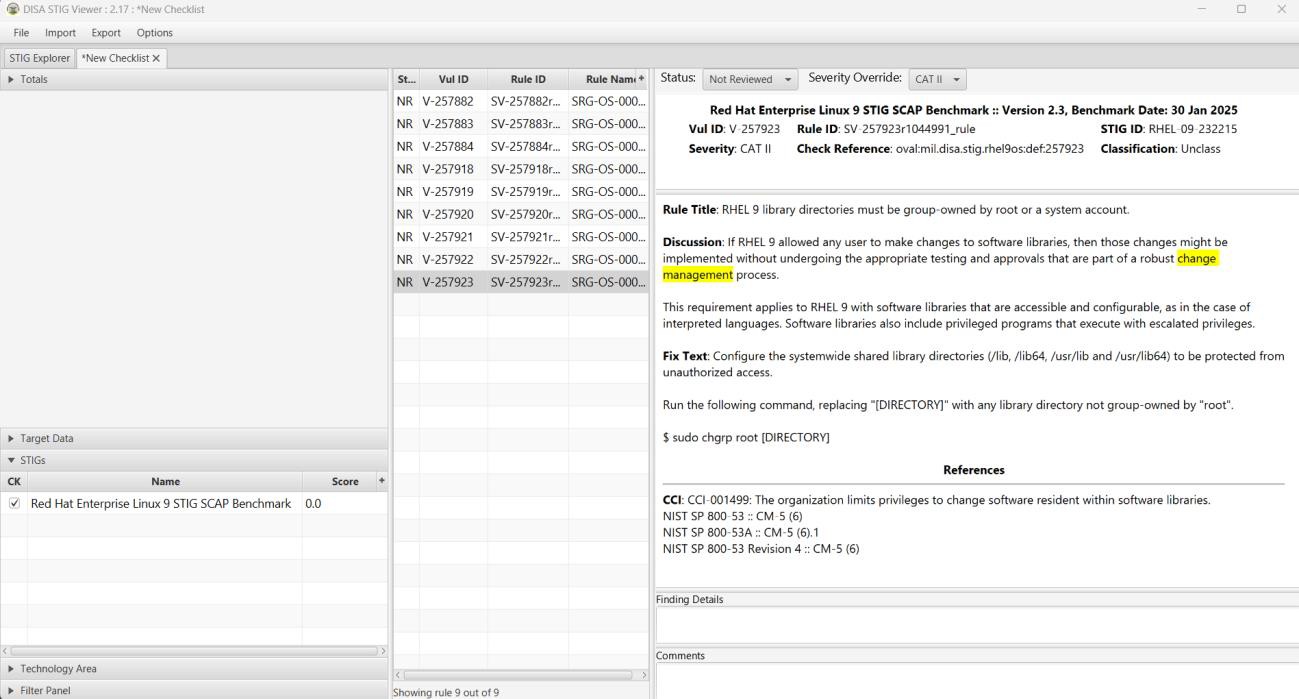

Check your stig viewer and go to RHEL 9 stigs.
Set a filter for “change management”.
- How many STIGs do you see?
Review the wording, what is meant by a robust change management process?
- Do you think this can be applied in just one STIG? Why or why not?
- What type of control is being implemented with change management in these STIGS?
  - Is it different across the STIGs or all the same?

Monitoring configuration drift with Aide

Go into the sandbox lab: https://killercoda.com/playgrounds/scenario/ubuntu
Install aide and watch the installation happen.
```
apt -y install aide
```
- What is being put in the path /etc/aide/aide.conf.d/?
  - How many files are in there?
Check your version of aide
```
aide -v
```
Read the man page (first page).
```
man aide
```
- What does aide try to do, and how does it do it?
What is the configuration of cron found in /etc/cron.daily/dailyaidecheck?
- What does this attempt to do?
- What checks are there before execution?
- Read the man for capsh, what is it used for?
Set up aide according to the default configuration
```

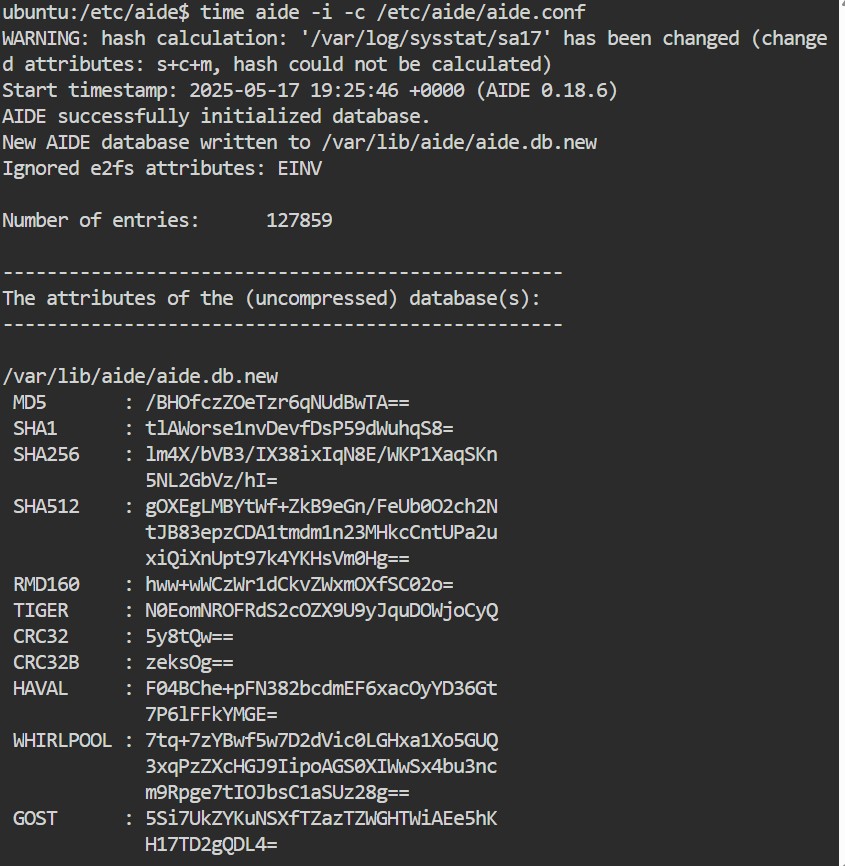

time aide -i -c /etc/aide/aide.conf
```
- How long did that take?
  - How much time was wall clock v. system/user time?
  - Why might you want to know this on your systems?
  - What do you notice about the output?
    1. What do you need to go read about?

(Mine took 5 minutes 8 seconds to run on the lab system)

Set the database up properly

cp /var/lib/aide/aide.db.new /var/lib/aide/aide.db

Test aide by making files in a tracked directory
```
mkdir /root/prolug
touch /root/prolug/test1
touch /root/prolug/test2

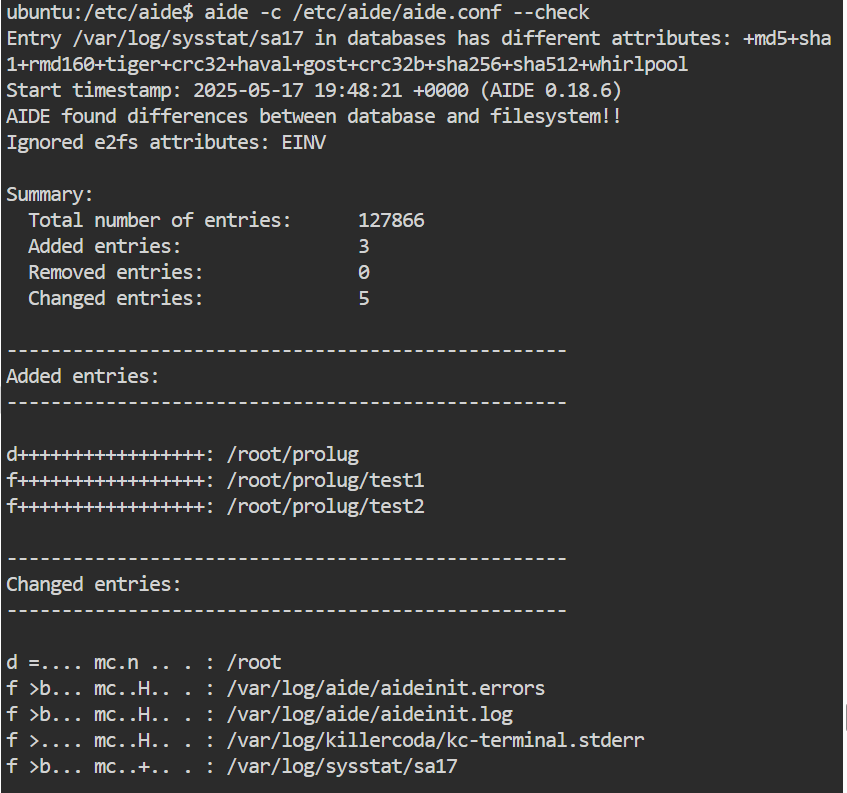

time aide -c /etc/aide/aide.conf --check
```
- Did you see your new files created?
- How long did this take to run?
  1. What type of usage do you see against user/system space?

Using Ansible to fix drift

Complete the lab here: https://killercoda.com/het-tanis/course/Ansible-Labs/16-Ansible-Web-Server-Env-Deploy
When you finish ensure that you see broken output for 8081, as required.
```
curl node01:8081
```
One of the dev teams figured out they could modify the test and qa environments because a previous engineer left them in the sudoers file. You can address that separately with the security team, but for now you need to get those environments back to working. Run your original deployment command to see if it sets mhe environment back properly.
```

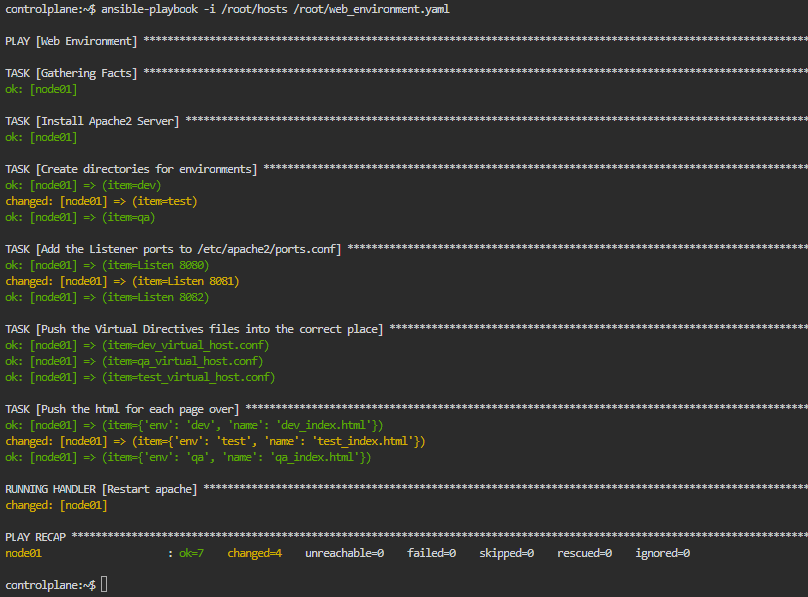

ansible-playbook -i /root/hosts /root/web_environment.yaml
```

Did this force the system back into a working configuration?
- If it worked, would it always work, or would they (the systems) need to be manually intervened?
- What is your test? (hint: curl the ports 8080, 8081, and 8082 from previous commands)
Could this cause potential problems in the environment?
- If so, is that problem based on technology or operational practices? Why?

Digging Deeper challenge (not required for finishing lab)

Complete this lab: https://killercoda.com/het-tanis/course/Ansible-Labs/19-Ansible-csv-report
- Can you think about how you’d use this to verify that a system was stamped according to your build process?
  - You may have to tie it in with something like this lab and add some variables to your custom facts files, maybe the date of deployment: https://killercoda.com/het-tanis/course/Ansible-Labs/12-Ansible-System-Facts-Grouping

Be sure to reboot the lab machine from the command line when you are done.
